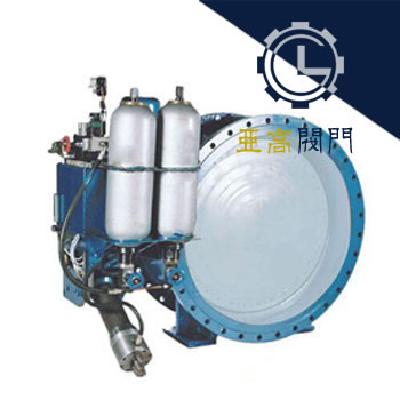

HD741X accumulator type hydraulic control check valve

HD741X accumulator type hydraulic control check valve

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20000 Sets per Month
  • Port: china
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2010-03-22
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  wenzhou
  • Brand Name:  diefa
  • Model Number:  HD741X

Characteristic description:
1, by two energy storage, no external energy can automatically turn off the valve.
2, sealing reliability, flow resistance coefficient is small.
3, the use of PLC intelligent control system, can realize the text, touch screen, such as a variety of user-friendly interface.
4, can achieve remote, local control.
5, according to the scheduled procedures and other pipeline equipment to achieve linkage operation.
6, with fast, slow adjustable off function.
7, with the cut-off, check function.
8, close to achieve slow closing function, effectively eliminate water hammer hazards, protect water pump and pipe network system security. structure characteristics
According to the control system, the control system is divided into ordinary accumulator type (X) and accumulator type lock type (XS).
1, mainly by the valve body, transmission mechanism, hydraulic station, electric control box, such as the four parts
2, the valve body by the body, butterfly plate, valve shaft, seal components and other parts of the composition.
3, transmission mainly by the hydraulic cylinder, a rocker arm, a supporting side plates and connected, a transmission component is the main actuator hydraulic power open and close the valve.
4, hydraulic station, including the pump unit, manual pump, accumulator, solenoid valve, relief valve, flow control valve, globe valve, hydraulic manifold block, fuel tank and other parts.
5, manual pump for system debugging and special conditions of the valve opening and closing.
6, flow control valve for open valve timing.
7, the transmission hydraulic cylinder is provided with a quick closing time regulating valve, a slow closing time regulating valve and a quick and slow closing angle regulating valve.
8, system, two accumulators are reserved for each other, provide active source of the valve opening and closing.
9, the valve shaft with a long, short axis of the structure can be.
10, the general use of horizontal layout; also can be based on user requirements using vertical arrangement.
11, hydraulic station, electric control box and valve body can be integral installation, can also be installed separately. When the user does not make a special description for the overall installation. When the vertical arrangement is adopted, the split type installation is adopted.
12, hydraulic system solenoid valve control characteristics are generally positive effect type,
That is: the solenoid valve to open the valve, butterfly valve off valve; vice versa for the reverse action type, that is, the solenoid valve to open the valve to open the valve, the valve closed valve. Conventional matching solenoid valve for the positive role, the use of the reverse action should be explained in order.

  • Place of Origin:  wenzhou
  • Brand Name:  diefa
  • Model Number:  HD741X
